Ericsson F3507g Wwan Driver

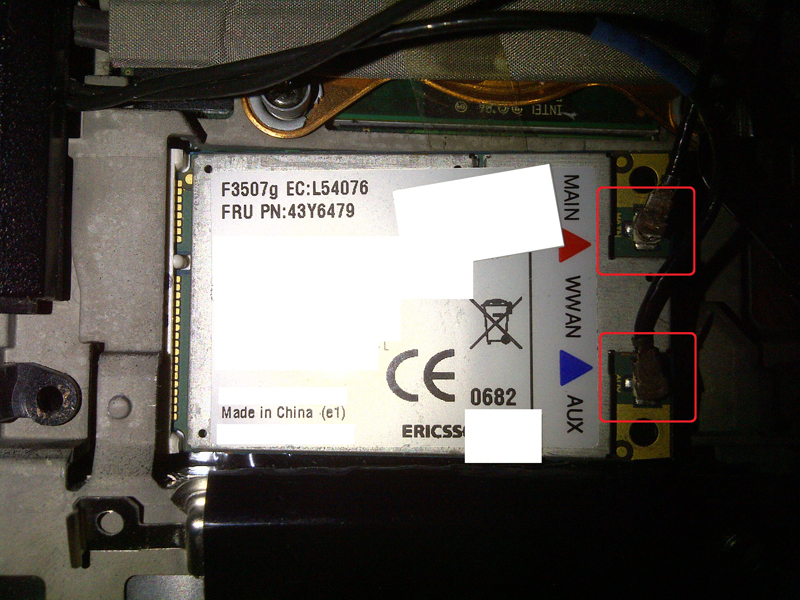

Hi all, I recently pulled an Ericsson F3507g HSPA wwan card from an LG x120 netbook to use in my wwan slot in my Precision M4500. No matter what I can't get drivers installed. From looking online, theres Lenovo drivers for the same chipset that don't even require a client with Windows 7 (I'm running 64bit), but whenever I try either the Lenovo or the Dell installer for thier versions of this card, I get a 'Internal Error 23000. Authentication Failed.
This Devices Cannot be installed on this Computer.' I've tried extracting the.exe's even to manually install the drivers but so far no luck. I'm quite stumped.Also, The LG x120 the card was from was designed for AT&T (I even tried AT&T's horrible connection manager), and I plan on using this card with AT&T.Thanks in advance!Edit: I've also seen people saying how they have to tape pin 20 on these cards? I havn't tried that yet but not quite sure if that was only a Lenovo thing.Edit2: I taped pin 20 and still get the same error. Bios version A05. Double click it and choose the Driver tab. Choose Update Driver.Click 'Browse my computer for driver software' then choose 'let me pick from a list of device drivers on my computer'.
A new windows should appear. Click the 'have disk' button.On the new window, click browse and navigate to the folder you have extracted files. Should be something like '3G Ericsson DriversUnified'.
Then click 'OK'.Choose the signed 'F3507g Mobile Broadband Device', the one with the certificate next to the name.Allow your system to install the driver.Reboot. Double click it and choose the Driver tab. Choose Update Driver.Click 'Browse my computer for driver software' then choose 'let me pick from a list of device drivers on my computer'.
Panasonic Wwan Drivers
A new windows should appear. Click the 'have disk' button.On the new window, click browse and navigate to the folder you have extracted files. Should be something like '3G Ericsson DriversUnified'. Then click 'OK'.Choose the signed 'F3507g Mobile Broadband Device', the one with the certificate next to the name.Allow your system to install the driver. I googled the file name and I found it on that guys Skydrive!
Drivers loaded up and installed. And it works! Thank you soooo much.Now if only I could figure out if this was the driver that supports Mobile Broadband like the new lenovo driver without a connection manager. I can use it as a dial up network, which is how i'm connected now, but apparently that new driver used windows 7 mobile broadband support, meaning shows signal and everything. I don't want to push my luck though lol.EDIT: Under network adapters, i see a 'mobile broadband connection' but it will not connect because it says 'mobile broadband service not enabled', and it won't enable. I can't even find any info on the service with a google search.
Ericsson F3507g WWAN AdapterLenovo Partnumbers. Option PN 43R9152 (AT&T). FRU 43Y6537 (AT&T).
FRU 43Y6513 (Other)Forumthread with (scroll down):FirmwareDateFRURemarksR1A03420Y6477R1B00320Y6479R1B/120Y6513R1D0620Y6537better performance and stability, fixed many bugs from the previous versionUnlike other manufactures (Dell, Toshiba etc.) Lenovo does not release the firmware update utility public, so the only way to get a newer version F3507g is by replacing the existing one.
